RF Choke for H.F M.A.Pinfold ZL1BTB
I am on the quest to reduce the receive noise level on my radio '
I have tried earth stake at the shack ( it is outside separate from the
house and used to be her "she shed" for sewing but it turned out
inadequate size wise so i moved in ) And it seemed to reduce
the background noise on 40 m by a flickering s point or so ....but "s" points
add up !!
My antenna is a full sized 80m dipole suspended 9m at each end and fed with
300ohm window ribbon the antenna is in a field bordering on an
industrial area the feed line is about 40 m long connected in the
shack , to a
homebrew 1:1 balun wound on a ferrite torroid core and this connects
directly with a LDG pro 2 auto tuner. A lot of the noise I think is
locally generated domestic noise which seems to reduce late at night ,
however this baseline noise can be masked by HF band noise when the
atmosphere gets somewhat energetic .
I suspect some of this local noise may be picked up via my feedline and
coming down into the shack on the surface of the braid
All I need is a choke to form a high impedance to rf flowing on the
surface of the coax braid , I did have a large red torroid of unknown
composition in the junk box so I got some rg316 and wound about 25 turns on it
and connected that in series with my ant system between the 1:1 balun and the
antenna auto tuner . Its seemed to reduce the ambient noise down by a couple of
flickering "s" points so i thought Id try one made with RG8 coax
as RG213 max power rating is 20W and the ic7300 is gonna turn that rg317
coax to a toaster element when i hit the Tx button at 100w, so I purchased a

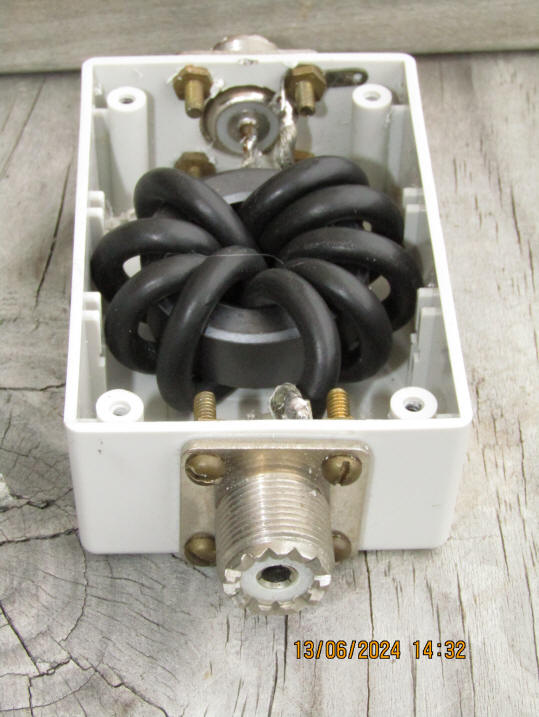

large ferrite torroid labeled L15 from Jaycar (
Australian based components retailer) found a length of rg58 and
rewound with 9 passes through the ring ( a much bigger torroid would have been
better ) the result is the picture above.
I leave it in the feedline , I suspect it helps a little bit the
true test would be removing it when the atmospheric noise level is lower
and see if it does make a difference on unmasking weak signals but
at the moment I look at it and consider it my " anti arthritic
copper bracelet worn on my wrist" does it really work ???

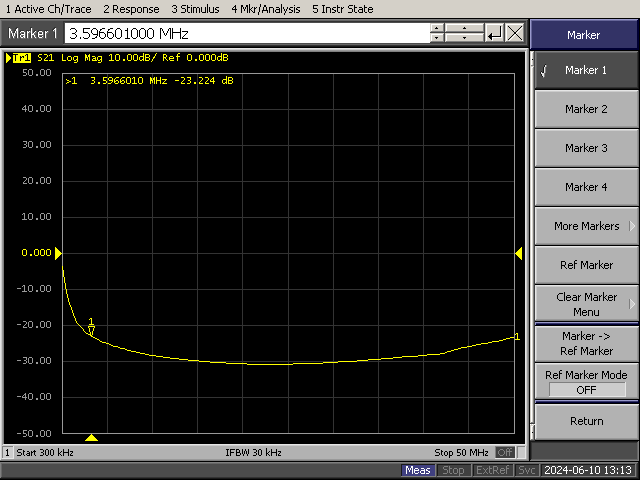

I connected the choke to the e5062 VNA tx and rx ports
connecting only the braid to the centre conductor of each of the coax leads on
the VNA and did a "21" sweep
and this was the result from 0.3 Mhz to 50Mhz . I think
need more choking impedance down below 3.00 Mhz .
Domestic "noise " radiation will be higher at 0.3 to 1 Mhz and then
will naturally reduce as one goes up in frequency towards 25 Mhz or so.
I need to try more inductance and maybe throw a hand
full of ferrite sleeves on the feedline at the antenna end ??
